We are currently in the process of capturing images of all 40,000 parts we carry in stock. Please be patient - if the image of a product you are searching for isn't available, it will be soon! If you need help finding a product that matches your equipment, please call or email us
Part #
Description
Price
Add To Cart
***MULTIFUNCTION PROGRAMMABLE SOLID STATE TIMER RELAYS***
*

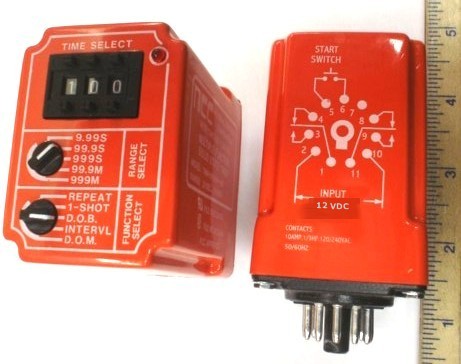

TMM-0999M-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"MULTI-MODE" (DELAY ON, DELAY OFF, or REPEAT CYCLE ON & OFF) VARIABLE TIME DELAY (.05 SECONDS to 999 MINUTES-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE VARIABLE))-11 PIN OCTAL BASE
$116.75
TMM-0999M-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"MULTI-MODE" (DELAY ON, DELAY OFF, or REPEAT CYCLE ON & OFF) VARIABLE TIME DELAY (.05 SECONDS to 999 MINUTES-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE VARIABLE))-11 PIN OCTAL BASE
$116.75
*
******"DELAY ON" VARIABLE TIME DELAY SOLID STATE RELAYS*******
*

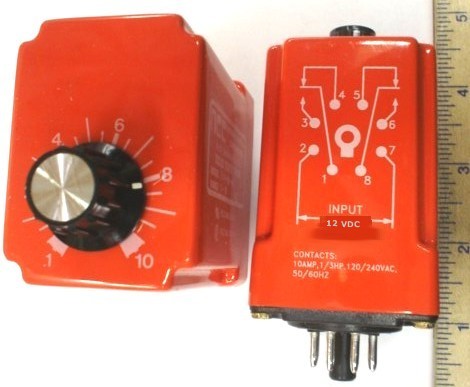

T1K-00010-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.1 to 10 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00060-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.6 to 60 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00300-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (3 to 300 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90

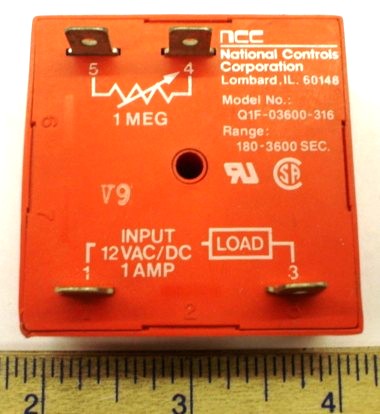

Q1F-03600-316
12 VOLTS DC COIL SPST 1 AMP @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (180 to 3600 SECONDS)-REQUIRES EXTERNAL 1 MEG OHM POTENTIOMETER FOR VARIABLE FEATURE OR A FIXED 1/4 WATT RESISTOR FOR FIXED TIME DELAY-USES 1/4" SPADE TERMINALS
$37.50
Q1F-36000-316
12 VOLTS DC COIL SPST 1 AMP @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (1/2 HOUR to 10 HOURS)-REQUIRES EXTERNAL 1 MEG OHM POTENTIOMETER FOR VARIABLE FEATURE OR A FIXED 1/4 WATT RESISTOR FOR FIXED TIME DELAY-USES 1/4" SPADE TERMINAL
$37.50
*
T1K-00060-462
24 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.6 to 60 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00180-462
24 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (1.8 to 180 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00600-462
24 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (6 to 600 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
*
T1K-00002-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.05 to 2 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00010-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.1 to 10 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00030-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.3 to 30 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00060-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.6 to 60 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00180-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (1.8 to 180 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00300-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (3 to 300 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-00600-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (6 to 600 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
T1K-03600-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (36 to 3600 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$64.90
*

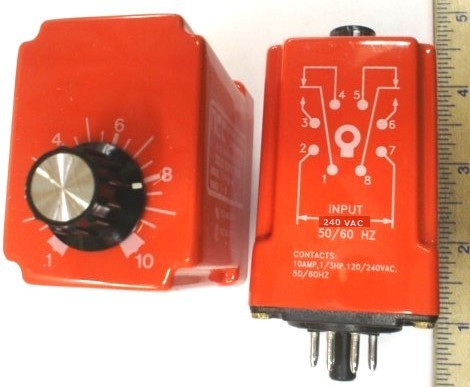

T1K-00010-465
240 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON" VARIABLE TIME DELAY (.1 to 10 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -8 PIN OCTAL BASE
$71.88
*
************DELAY ON VIA AN EXTERNAL SWITCH CLOSURE**************
**************VARIABLE TIME DELAY SOLID STATE RELAYS***************
*
T2K-00010-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (.1 to 10 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -11 PIN OCTAL BASE
$71.76
*

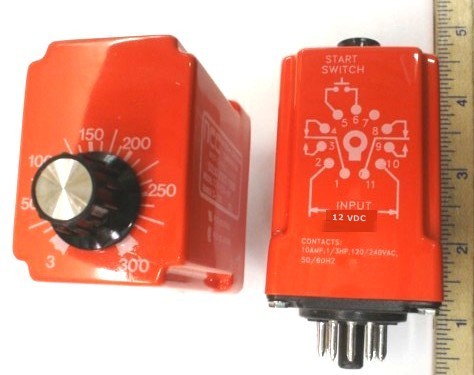

T2K-00060-466
12 VOLTS DC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (.6 to 60 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -11 PIN OCTAL BASE
$71.76
*

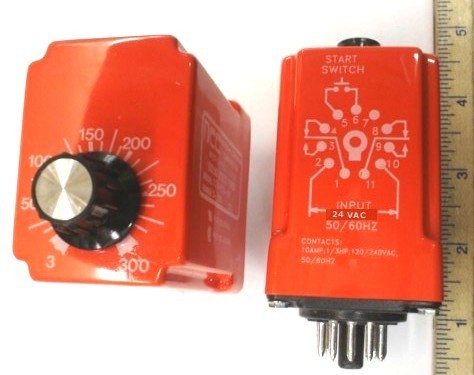

T2K-00060-467
24 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (.6 to 60 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -11 PIN OCTAL BASE
$71.76
*
Q2F-00001-321
120 VOLTS AC COIL SPST 1 AMP @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (.05 to 1 SECOND)-REQUIRES EXTERNAL 1 MEG OHM POTENTIOMETER FOR VARIABLE FEATURE OR A FIXED 1/4 WATT RESISTOR FOR FIXED TIME DELAY
$42.75
T2K-00010-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (.1 to 10 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -11 PIN OCTAL BASE
$71.76
T2K-00180-461
120 VOLTS AC COIL DPDT 10 AMPS @ 120 VOLTS AC CONTACTS RELAY-"DELAY ON VIA EXTERNAL SWITCH" VARIABLE TIME DELAY (1.8 to 180 SECONDS-WITH A POTENTIOMETER BUILT ON TO RELAY TO PROVIDE THE VARIABLE DELAY) -11 PIN OCTAL BASE
